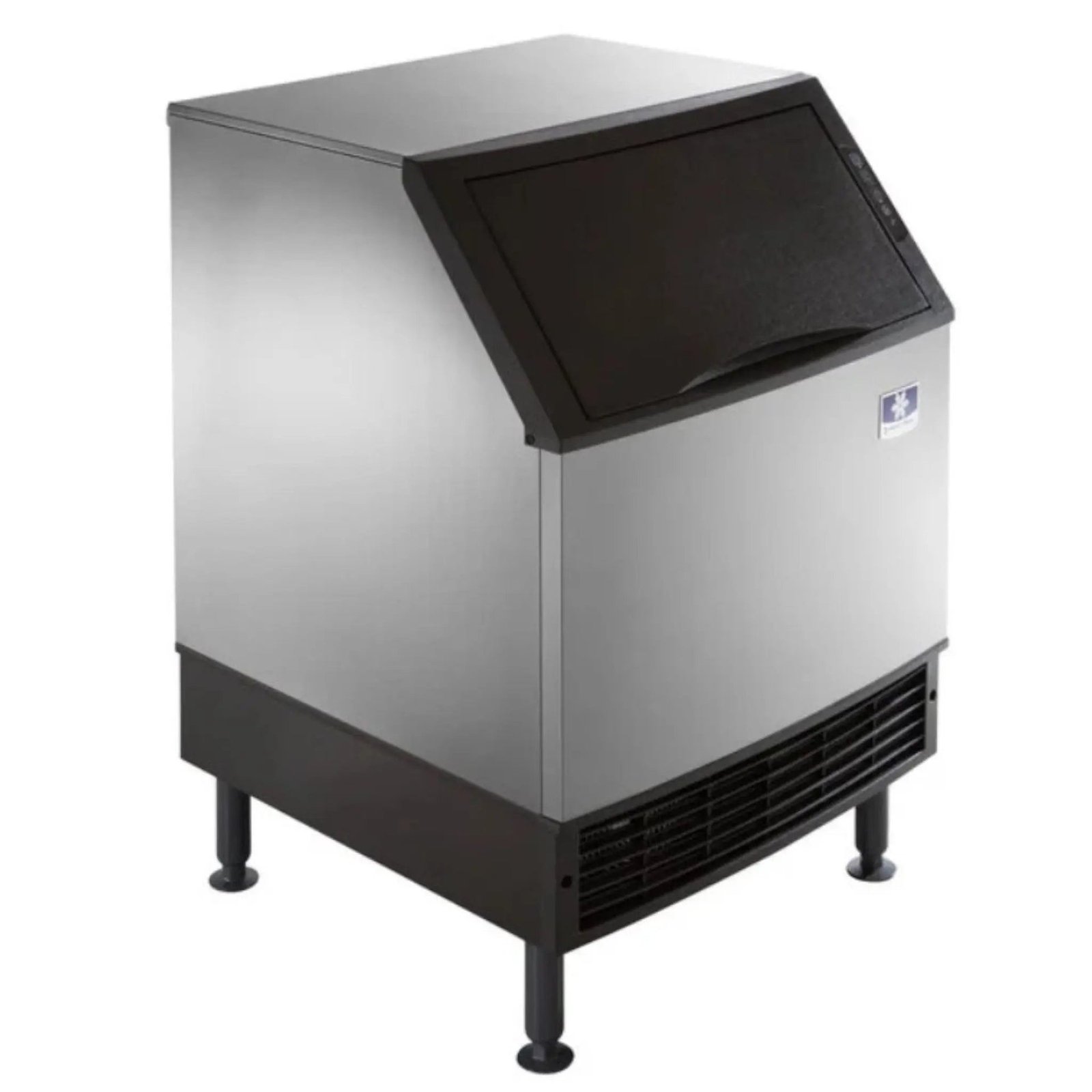

Manitowoc UYF-0190A NEO Undercounter Ice Maker with Bin – 193 lb Half Dice, Air-Cooled

Manitowoc UYF-0190A Ice Maker: NEO Undercounter Ice Machine with 90 lb Bin

The Manitowoc UYF-0190A ice maker is a self-contained, air-cooled undercounter ice machine that produces up to 193 pounds of half-dice cubes per 24 hours and stores 90 pounds of finished ice in its integrated bin. At just 26 inches wide and 38.5 inches tall, this NEO-series unit is engineered to slip beneath a standard back-bar or service counter, putting a steady supply of chewable, drink-friendly ice exactly where staff need it.

Half-dice cubes measure 3/8″ × 1-1/8″ × 7/8″ – the workhorse cube size that cools drinks fast, displaces well in a glass, and dispenses cleanly. Because the UYF-0190A combines the ice maker and the storage bin in one cabinet, there is no separate bin to buy or plumb, and the sealed food zone keeps the ice contact area easy to clean and sanitary.

Specifications

Key Features

The NEO control platform gives this Manitowoc a simple push-pad interface with an at-a-glance indicator panel: power on, bin full, service needed, and clean-cycle-in-progress lights tell an operator the machine’s status without opening a manual. A delay button pauses ice production for 4, 12, or 24 hours, so you can schedule harvesting around low-demand overnight periods or utility windows.

• AlphaSan antimicrobial protection is built into key water-path components to help inhibit bacterial and slime growth between cleanings.
• Forward-sliding bin design lets a technician reach the refrigeration components from the front without pulling the machine out from under the counter.
• Sealed food zone separates the ice-contact area from the mechanical compartment for faster, more sanitary cleaning.
• Air-cooled, self-contained cabinet – no remote condenser and no separate bin to source.

About Manitowoc Ice

Manitowoc Ice is one of the most recognized names in commercial ice, manufacturing cubers, flakers, and dispensers for foodservice and hospitality operators worldwide. The brand built its reputation on durable, serviceable undercounter and modular machines, and the NEO line carries that forward with easier cleaning and self-diagnostic indicators. You can review the manufacturer’s full model documentation on the Manitowoc Ice website.

Where This Machine Earns

With a 193 lb daily output and a 90 lb bin, the UYF-0190A is sized for small-to-mid volume beverage service where counter space is tight. It fits naturally in cafes and coffee shops, bars and back-bar stations, small restaurants, break rooms, convenience counters, medical and dental offices, and hotel pantries. Half-dice ice is the standard cube for mixed drinks, iced coffee, and fountain beverages, so it typically suits any location that serves cold drinks by the glass.

Air-cooled operation means it does not need a water-cooled condenser line, but it does draw warm air from the room and vent it, so allow the manufacturer-specified clearance around the cabinet for reliable production in warmer spaces.

Condition & What’s Included

This Manitowoc UYF-0190A is offered as a new unit and ships with the factory ice scoop and 6″ adjustable legs. Because it is self-contained, the machine and bin arrive as a single cabinet ready to set in place, level, connect to water and drain, and plug into a standard 115V circuit. New machines from Finn Vending Sales carry our 2-year limited parts-and-service warranty (replacement parts, labor, and remote technical support for U.S. customers); exact terms are listed on our Warranty Policy page.

Why Buy From Finn Vending Sales

Finn Vending Sales ships this ice machine with free freight across the continental United States from our Hanover, Minnesota facility. Orders are tested and prepared for dispatch within 1-2 business days of payment, with typical delivery in 3-7 business days. Every purchase is backed by a 30-day return window with free return shipping on approved returns, and we offer on-site installation packages plus a Vending Startup Program for first-time operators. Prefer to talk it through first? Use secure checkout on this page and our team will review and invoice you directly. Browse more units in our Ice Makers collection.

Compare related machines

Buyers weighing this machine also look at these Finn Vending Sales listings:

• Manitowoc Ice Maker Machine, UC Neo W/Bin Half Dice 290 lb/day – UYF-0310A — $2,803
• Manitowoc Ice Maker Machine, Under Counter Neo W/Bin Half Dice 219 lb/day – UYF-0240A — $2,279
• Manitowoc Ice Maker Machine, W/Bin Half Dice Cubes 137 lb/day – UYF0140A — $1,886
• Manitowoc Ice Maker Machine, Half Dice Cube Style, 575 lb – IYT-0620A — $3,056

Frequently Asked Questions

How much ice does the Manitowoc UYF-0190A make per day?

Up to 193 pounds of half-dice cubes in 24 hours under favorable conditions (70°F air / 50°F water), and 140 pounds AHRI-certified at the tougher 90°/70° rating. It stores 90 pounds of that ice in its built-in bin.

What size ice does it produce?

Half-dice cubes measuring 3/8″ × 1-1/8″ × 7/8″ – a versatile cube for mixed drinks, iced coffee, water service, and fountain beverages.

What power does the UYF-0190A need?

It runs on a standard 115V / 60Hz single-phase circuit and draws about 6 amps, so it plugs into a common wall outlet rather than requiring a dedicated 208-230V line.

Will it fit under a standard counter?

At 26″ W × 28.5″ D × 38.5″ H on 6″ legs, it is built for undercounter installation. Confirm your counter height and allow the manufacturer-specified air clearance around the air-cooled cabinet.

Is this a new or refurbished machine?

This UYF-0190A is a new unit and includes the factory ice scoop and legs, backed by our 2-year limited parts-and-service warranty.

Does it need a water-cooled line?

No. It is air-cooled and self-contained, so it only needs an incoming water supply, a drain, and a 115V outlet – no separate condenser water line.

How is it delivered?

By curbside freight from our Minnesota facility, free across the continental U.S., typically within 3-7 business days after your order is prepared. See our Buyers Guide for setup and delivery details.
