Hoshizaki B-500SF Ice Storage Bin – 30″ Wide, 500 lb Top-Hinged, Stainless Steel

Hoshizaki B-500SF Ice Bin — 30″ Wide, 500 lb Stainless Steel Storage

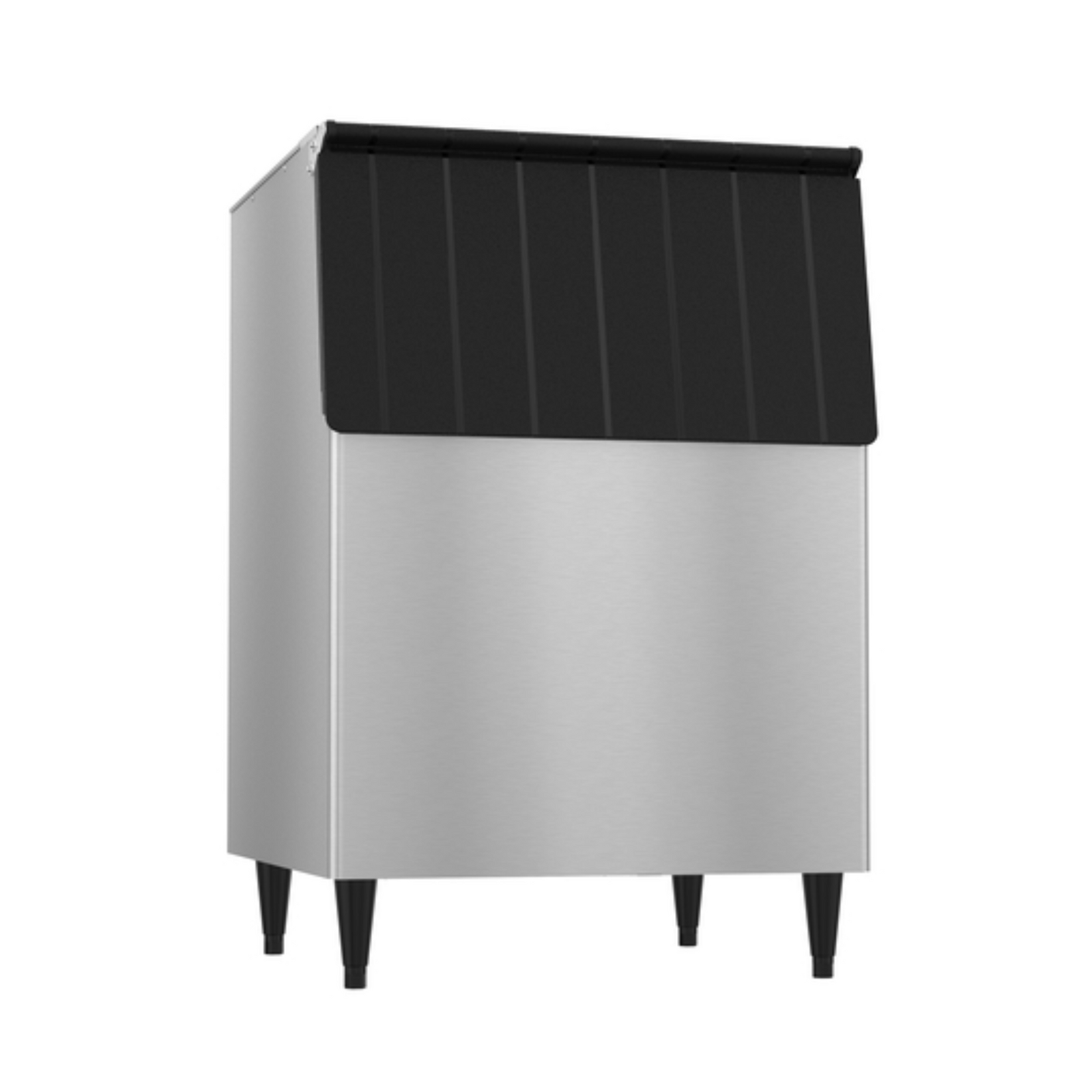

The Hoshizaki B-500SF ice bin is a 30-inch-wide commercial ice storage bin engineered to hold up to 500 pounds of ice beneath a top-mounted modular ice machine head. With a stainless steel exterior, a seamless polyethylene liner, and foamed-in-place polyurethane insulation, it is designed for operations that produce and dispense ice all day and need it to stay clean, dry, and structurally protected until it is scooped.

Rated at 16.33 cubic feet of usable storage volume, the Hoshizaki B-500SF ice bin pairs with a wide range of Hoshizaki KM and F modular ice machines to build a stacked, space-efficient ice system. Its top-hinged, front-opening door swings clear of the work zone so staff can reach ice quickly, while the 6-inch painted legs lift the cabinet off the floor for sanitation and cleaning underneath.

Hoshizaki B-500SF Specifications

Key Features

• 500 lb capacity in a 30″ footprint — a high storage-to-width ratio that fits tight bar backs, kitchen lines, and beverage stations.
• Seamless polyethylene liner — no crevices to trap debris, so daily wipe-downs are fast and the ice contact surface stays sanitary.
• Foamed-in-place polyurethane insulation — packed into all bin walls and the bottom to slow melt and preserve ice between refills.
• H-GUARD Plus Antimicrobial Agent — built-in surface protection that inhibits bacteria, mold, and mildew growth on the bin.
• Top-hinged, front-opening door — opens up and out of the way for one-handed scooping during a rush.
• 3/4″ FPT drain and 6″ legs — simple plumbing tie-in and easy floor cleaning underneath the cabinet.

About Hoshizaki

Hoshizaki is a global leader in commercial ice machines and refrigeration, with its U.S. operation, Hoshizaki America, manufacturing ice equipment in Peachtree City, Georgia. The brand is known for durable, sanitation-focused designs — CleanCycle systems, corrosion-resistant materials, and long-life components — that hold up in demanding foodservice and hospitality settings. Its SF-series storage bins are a workhorse line trusted by operators pairing them with the company’s KM cuber and F flaker heads. The B-500SF carries that same build quality into the storage side of an ice system, with a seamless liner and antimicrobial protection that make routine sanitation straightforward and keep stored ice food-safe.

Where the B-500SF Earns Its Place

This bin suits any operation that runs through ice steadily: restaurants and bars, hotels and banquet kitchens, cafeterias, healthcare and senior-living facilities, convenience stores, and beverage or self-serve stations. Its 500 lb reserve typically bridges peak service periods so an ice machine head can keep pace without running dry, and the insulated cabinet holds that reserve overnight so the head is not forced to run continuously.

Because it is a storage bin rather than a producer, it must be paired with a compatible top-mounted modular ice machine — Hoshizaki KM (cuber) and F (flaker/nugget) series heads are the natural match, and a bin adapter may be required depending on the head’s width.

When sizing a system, a good rule of thumb is to match daily ice demand to the head’s production rate and use the bin as a buffer for peak hours, not as the sole source of daily volume. The B-500SF’s 500 lb / 16.33 cu ft capacity comfortably supports a mid-to-high-output modular head, and its 30-inch width lets you build a tall, narrow ice system where floor space is at a premium. Position it near the point of use — the bar well, the drive-thru beverage station, or the prep line — to cut the number of ice trips staff make during service.

Condition & What’s Included

This is a new Hoshizaki B-500SF, shipped with the standard 6″ painted legs and top-hinged front-opening door as configured by the factory. As a new unit it is covered by Finn Vending Sales’ 2-year limited parts-and-service warranty (replacement parts, labor, and remote technical support for U.S. customers). The ice machine head, bin adapter, and any dispensing hardware are sold separately based on your production requirements.

Why Buy From Finn Vending Sales

Finn Vending Sales ships the Hoshizaki B-500SF ice bin with free freight across the continental U.S. from our Hanover, Minnesota facility, with orders prepared for dispatch within 1–2 business days of payment. Every order is backed by a 30-day return window with free return shipping on approved returns, plus on-site installation packages and a Vending Startup Program if you are building an ice or beverage operation from scratch. Prefer to talk specs first? Use secure checkout on this page and our team will help match the right ice machine head and adapter to this bin.

Compare related machines

Buyers weighing this machine also look at these Finn Vending Sales listings:

• Hoshizaki Ice Bin, 22″ Top-Hinged Door, 300# Storage – B-300SF — $1,091
• Hoshizaki Ice Maker Machine, Crescent Cube 665 lb – 22″ – KM-660MAJ — $3,850
• Hoshizaki Ice Maker, Cube Style, 489# R-404A refrigerant – KM-350MAJ — $3,184
• Hoshizaki Ice Bin – B-1300SS — $2,900

Frequently Asked Questions

How much ice does the Hoshizaki B-500SF hold?

It stores up to 500 pounds of ice, with 16.33 cubic feet of usable storage volume.

Does the B-500SF make ice on its own?

No. It is a storage bin only. You mount a compatible top-mounted modular ice machine head on top of it; the head produces the ice and it drops into the bin.

What are the exact dimensions?

30″ wide x 32.5″ deep x 46″ high, including the standard 6″ painted legs.

Will it fit through a standard doorway?

Yes. At 30″ wide it clears a standard 32″–36″ commercial doorway. Confirm your entry path, since the ice machine head is installed after the bin is positioned.

Is the B-500SF new or refurbished?

This unit is new and carries a 2-year limited parts-and-service warranty through Finn Vending Sales.

How is the drain configured?

The bin uses a 3/4″ FPT drain connection for tie-in to your floor drain or drain line.

Is it sanitary and certified?

Yes. The seamless polyethylene liner and H-GUARD Plus Antimicrobial Agent inhibit bacteria and mold, and the bin is ETL and ETL-Sanitation listed.

Browse more cold-storage and ice equipment in our Ice Makers collection, or read the Buyers Guide to match the right ice machine head to this storage bin.
